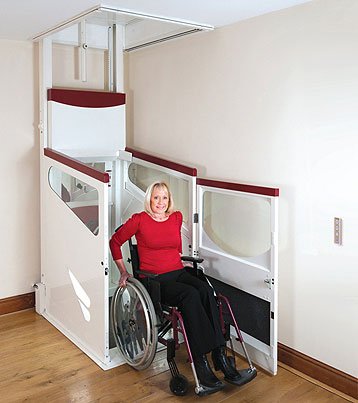

Harmony Through Floor Lift

Enjoy the freedom of your home with a wheelchair through floor lift.

Why be restricted to the ground floor of your home? You don't need to move to a bungalow or ground floor flat! Regain the freedom of your home by travelling between floors smoothly, quietly and safely in our Harmony wheelchair through floor lift.

Easy Installation

The installation of a through floor lift is straightforward and our expert installers at Terry Lifts will keep disruption to a minimum. Following the initial survey and decision to proceed, any necessary preparatory work will be undertaken and then the lift fitted in less than two days.

As space is always limited we have employed an ingenious car design and integral ramp so that the Harmony wheelchair lift is only fractionally larger on the outside than it is on the inside.

Harmony Compact

For those who do not use a wheelchair, the Harmony Compact seated model is a space saving and convenient alternative to a stair lift and requires just two thirds of the space of the standard Harmony.

Easy to Use

Operation is simple. Having called the lift from the easily accessible wall control switch, a push of the appropriate direction button signals in the car to travel up or down. The aperture ceiling panel is automatically lifted or replaced en route. To exit the car, simply follow the procedure in reverse.

Standard features of the Harmony Wheelchair Through Floor Lift:

  • Manufactured and tested to BS5900:2012 Report No. 160561. Warrington Fire Research Centre 4.8.92. Trapdoor-Report No.56875. Underpan-Report No. 56874.
  • Half-hour fire integrity maintained in ceiling/floor irrespective of whether the lift is parked upstairs or downstairs.
  • Control stations in car and at both floors which include direction, stop, key locking, car light and door open/close control.
  • In event of power failure, battery back-up system allows operation of car in the down direction by normal controls with all safety systems in operation.
  • The car is fitted with a light which comes on when lift is called.


Not available to buy online.
