Brooks 80 Curved Stairlift

£3,500.00 with VAT Relief
£4,200.00 including VAT

Brooks 80 Curved Stairlift - From £3500 - Subject to Survey

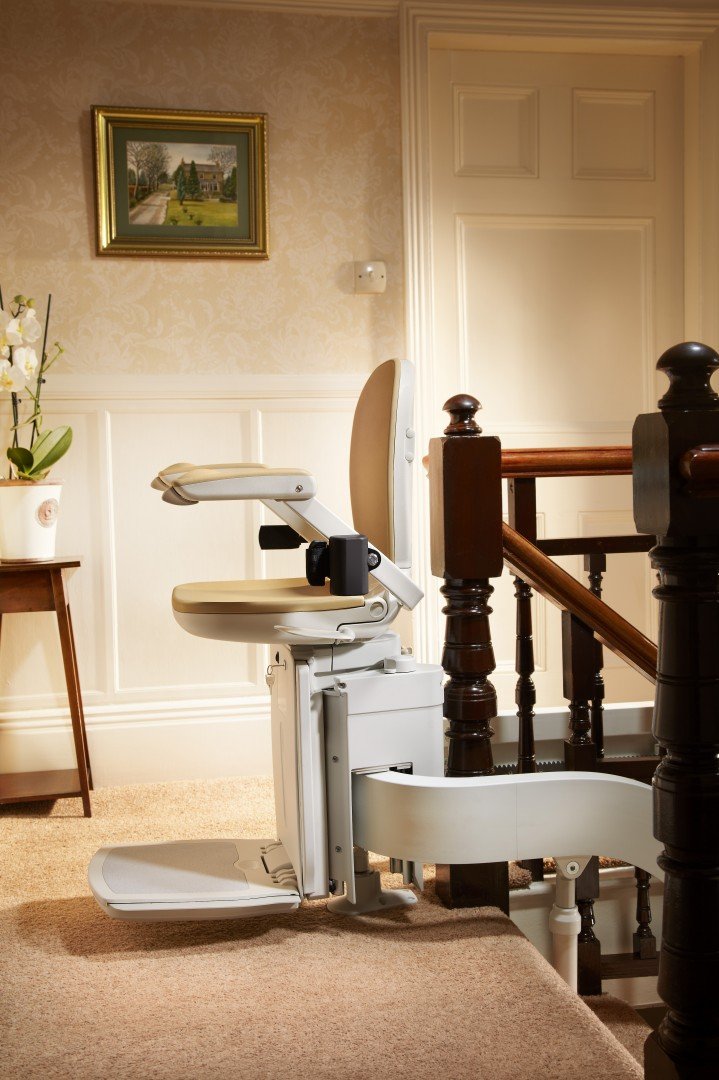

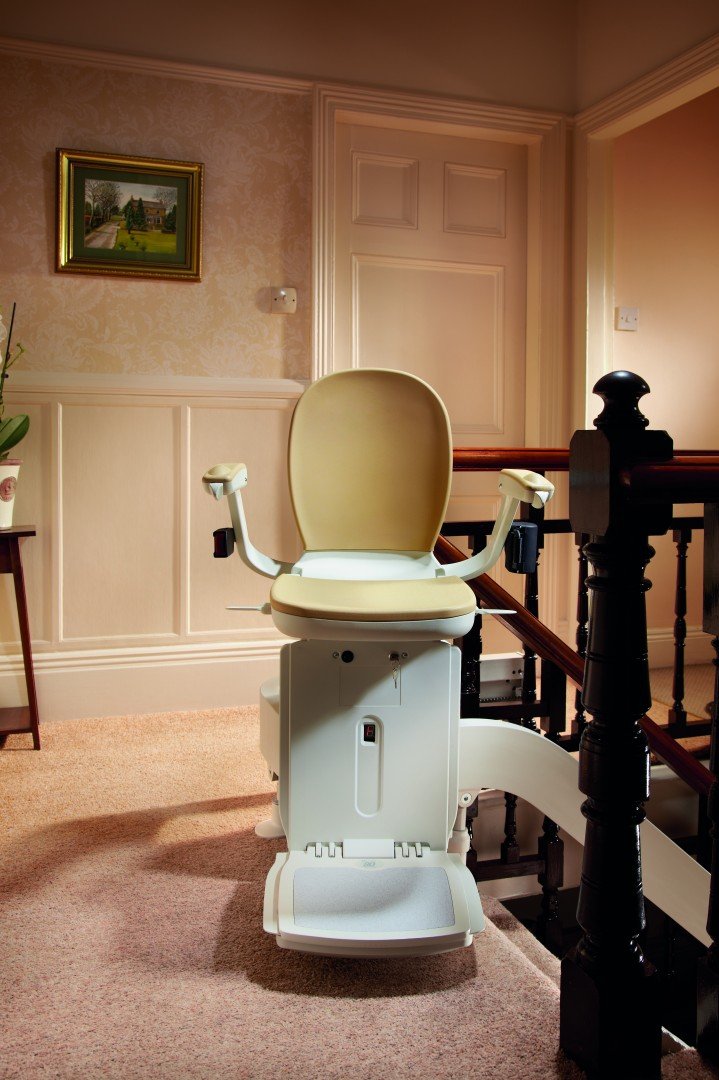

The Brooks 80 stairlift represents a major step forward in comfort and reliability. Incorporating many of the characteristics of Brooks's best selling straight stairlifts the Brooks 80 is a truly class leading product offering a wide range of options and accessories. Using the latest technology and Brooks's modular rail concept, the Brooks 80 has been developed to accommodate virtually all curved staircases.

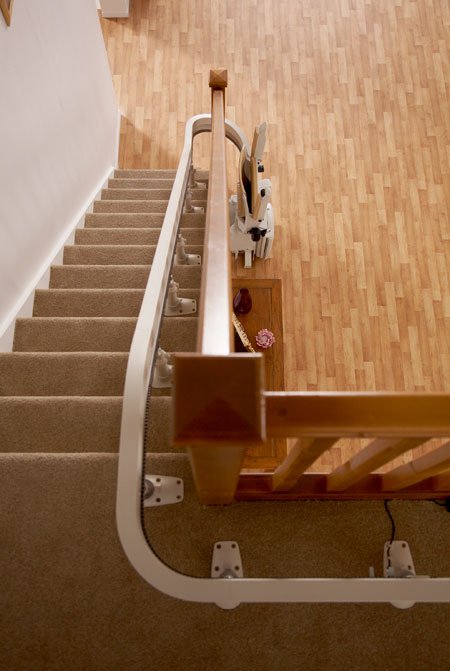

Engineering excellence ensures the Brooks 80 Stairlift provides a comfortable ride along a continuous slim and attractively finished rail on either the inner or outer curvature of your staircase.

The slim, stylish, yet robust design allows for plenty of access even on narrow stairs and has been designed to be a piece of modern furniture, to ensure it blends subtly into your home.

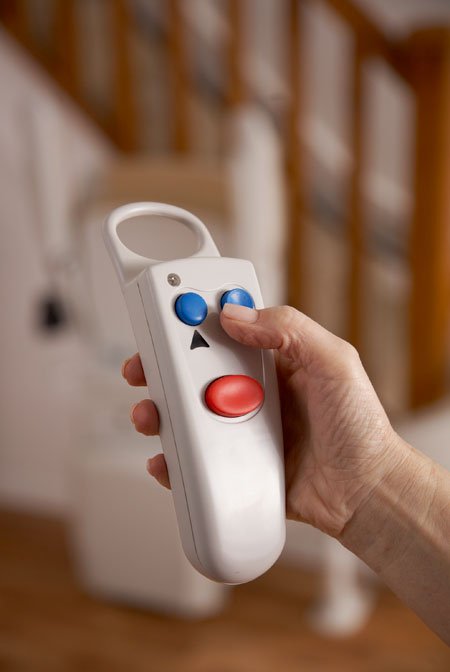

Designed with ease of use and comfort in mind, The Brooks 80 is operated using a rocker switch located on the armrest. Additional radio frequency remotes can also be provided to allow the lift to be remotely called.

The unique self leveling transport system moves the carriage along the single low profile rail and automatically adjusts the speed and level of the seat on cornering, providing an exceptionally smooth ride. The system's electronic programming ensures excellent operational performance.

The Brooks 80 is battery powered, allowing additional peace of mind in the event of a power cut.

The footrest of the Brooks 80 is extremely close to the ground floor level and has no step, also it ends level with the top stair nose, giving easy access to the landing.

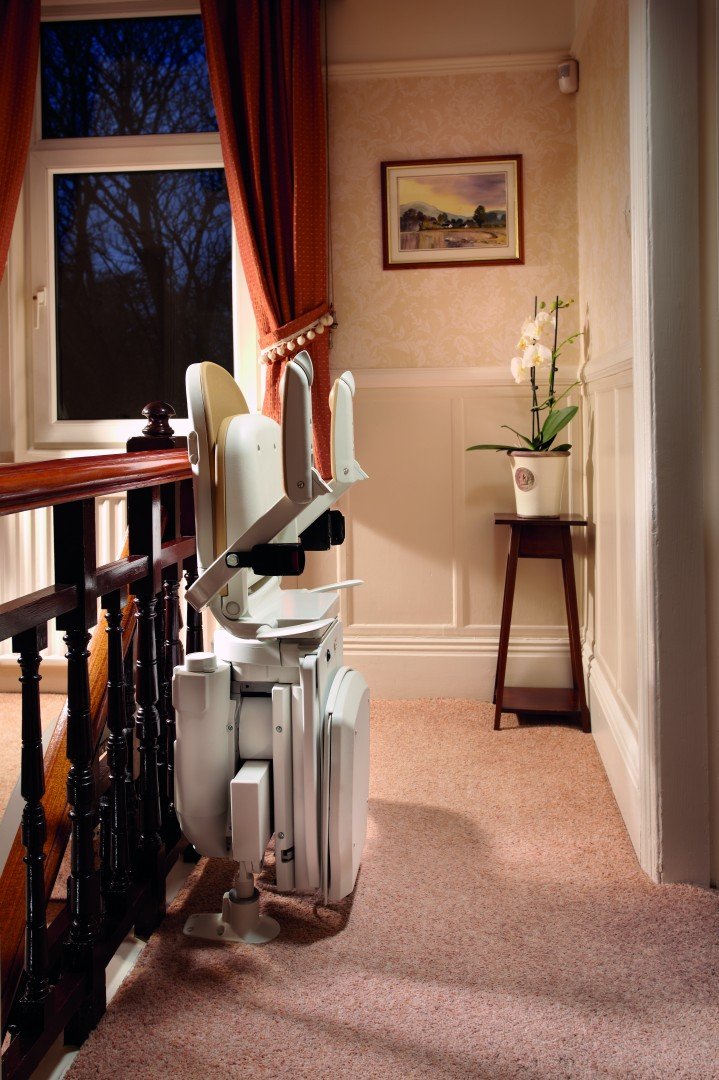

When not in use the Brooks 80 stairlift with its slim profile design can be easily folded away and also has an unique inside parking capability, ensuring the stairway is not obstructed for use by other members of the household.

Brooks 80 - Technical Information

Brooks 80 mm Inches
Floor to top of footrest (A) 50 2
Top of footrest to top of seat (B) 490-580 19-23
Top of seat to top of arms (C) 247 9.7
Top of arms to top of seatback (D) 388 15
Width between armrests (E) 450 18
Overall width (F) 567 22
Overall height (G) 1175-1235 46-49
Length of arms from seat back (H) 400 16
Length of seat base from seat back (I) 370 15
Length of footrest (J) 365 14
Width of footrest (K) 375 15
Front of footrest to wall (L) 640 25
Back of seat to wall (M) 90/140 3.5/5.5
Folded width (N) 320 13
Front of drop nose to first stair (O) 450 (min) 17.7
Distance from front of rail to wall 180 7
Minimum width required to swivel at top 730 29
